Touratech Suspension Touratech Suspension lowering Cartridge Kit -35mm for Husqvarna Norden 901 from 2022

€1,322.65
Delivery time: on order approx. 3 weeks
Part number
01-414-5865-0
incl. 0% Tax

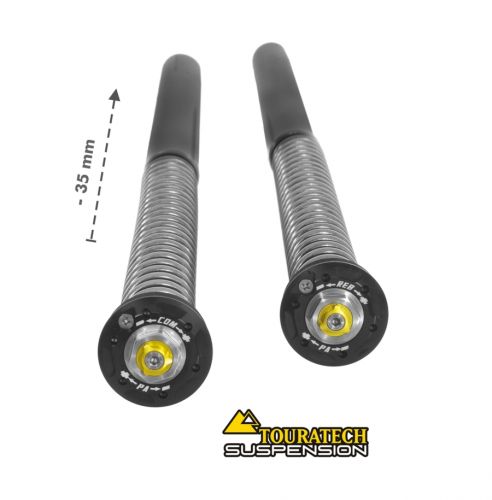

This Cartridge Kit is perfect for reducing the seat height (-35mm) on the Husqvarna Norden 901. Putting it simply, the Touratech Suspension Cartridge Kit Extreme is a suspension strut for the fork and the absolute top end in terms of suspension technology. The Closed Cartridge is installed into the original fork. This way the fork bridge/handlebar mount, brakes and wheel control and handlebar geometry are retained in full.  No additional modifications to the fork are required This Closed Cartridge  is been developed perfectly for touring and riding with frequent and strongly differing loads and riding conditions or extreme requirements.



Your benefits:

The Extreme setup compensates for any volume of luggage, from the rear bag to a loaded luggage system and/or a pillion rider. Spring preload, compression and rebound can be fully adjusted top-side. The damping oil is contained in a closed cartridge which allows precise dosing of the amount of oil. Thus the Closed Cartridge offers a significantly more refined and pleasant response behaviour of the fork. The finely adjusted damping allows effective and precise suspension settings to match your personal riding style at all times, for all road conditions and intended uses, regardless of motorways/fast roads, country roads, country lanes, offroad sections, long-distance travel with big luggage or a speedy, ambitious driving style. Should exceptionally tough road conditions act on the front wheel, the integrated "Hydraulic Endstop" prevents mechanical impacting of the fork.



Please note:

To ensure the parked stability of your Husqvarna Norden 901 after it has been lowered, we recommend using shorter kick stand and/or the centre stand.



The basic setup is adjusted for the demanding adventure rider with luggage.

Adaptation for exceptional requirements is possible. The suspension strut is then customised by us to your requirements using a spring with a suitable spring rate and other configurations.



Please use our suspension check and send us the completed form.



Scope of delivery:

- 2x Closed Cartridge -35mm

- with damper setting, (1x) rebound stage, (1x) compression stage.

- with spring preloading via adjustment tool (2x)

- adjustment tool

- ready for installation and ready-to-ride, fitted with pre-mounted fork spring.

- 1 litre oil (for installation of fork)

- user manual and instructions for installation

- 2x Fork protection sticker.



If you have any further questions, we will be happy to advise you. Contact us.
